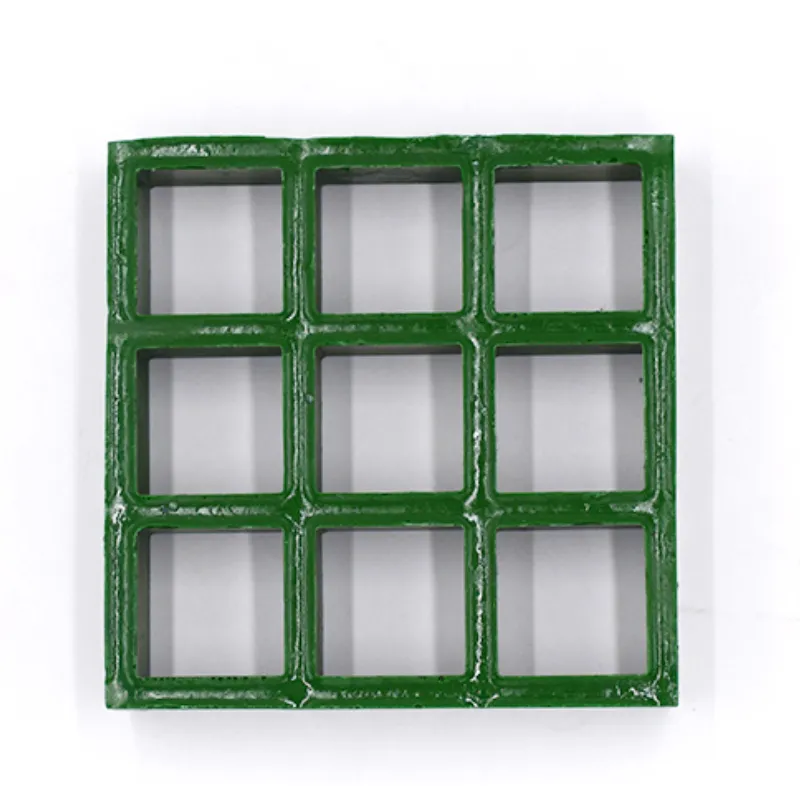

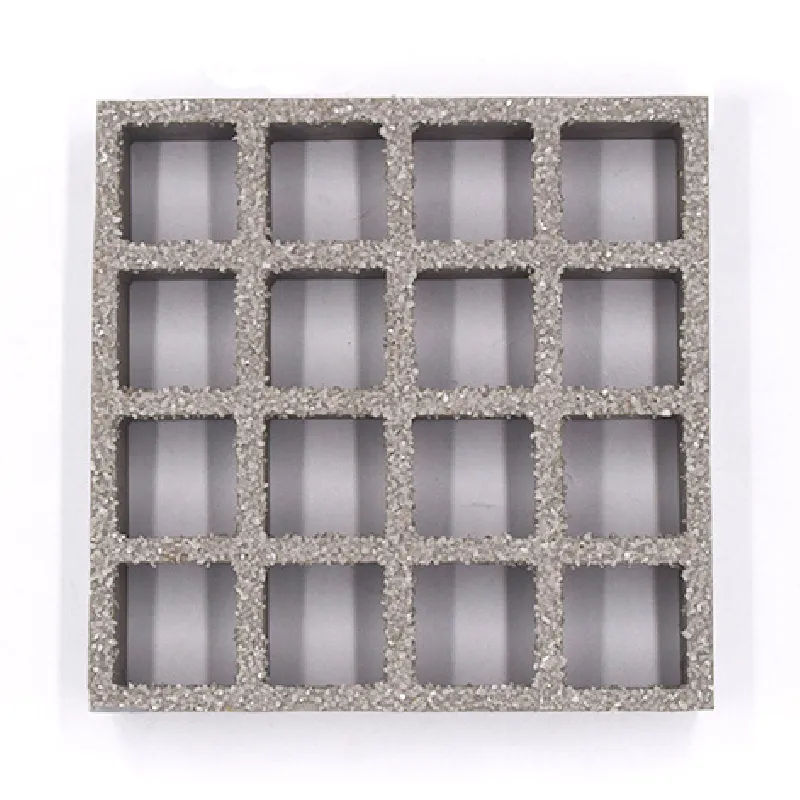

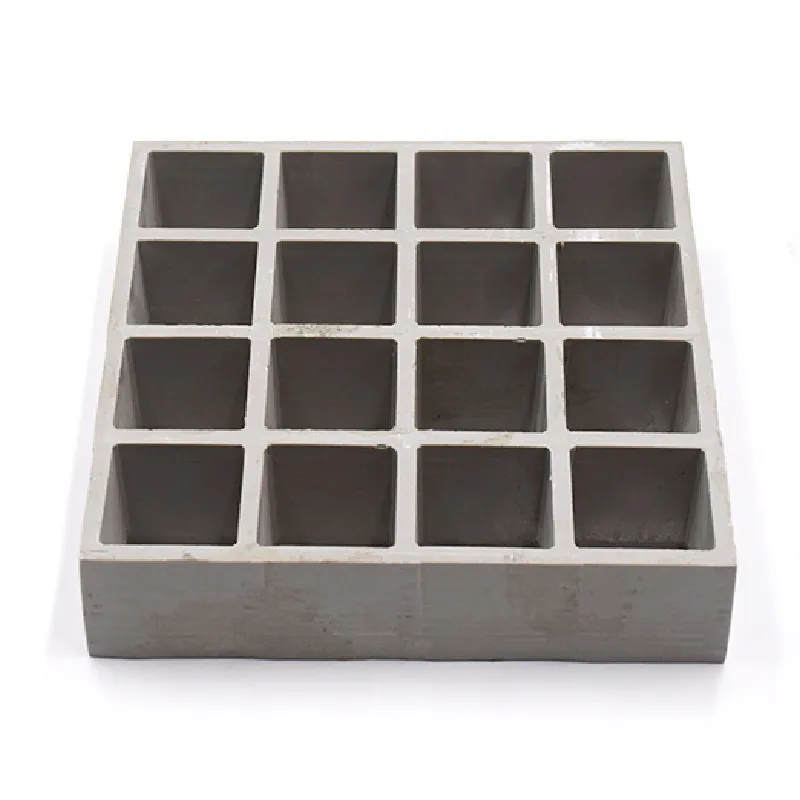

Non-Slip Fiberglass Molded Grating

FRP molded grating uses high-strength alkali-free glass fiber yarn as reinforcement material and thermosetting resin as matrix material. It is a load-bearing structural plate cast on a special metal mold. The product is lightweight, high-strength, corrosion-resistant, flame-retardant, strong and non-slip. It is widely used in petrochemical, electric power, sewage treatment, marine engineering and other industries. It is suitable for operating platforms, stairways, trench covers, building decoration and other occasions. It is an ideal load-bearing component for various corrosive occasions. Our products have passed a series of tests by domestic and foreign professional institutions and are exported to countries and regions such as America, Europe, Southeast Asia and the Middle East, and have been widely praised by customers.

Send email to us Download as PDF

Product Detail

Product Tags

Product Description

Specifications

Serial Number	Thickness(mm)	Grid Size(mm)	*Full Page Sze(W L mm)**	Porosity(%)	Unit Heavy(kg/㎡)
1	13	38*38	1220*3660	68	6.3
2	13	50*50	1220*3660	78	5.8
3	13	3838+1919	1220*3660	40	10.8
4	14	4040+2020	1007*4047	42	10.5
5	22	4040+2020	1007*4047	42	15.0
6P	25	38*38	1220*3660	68	12.7
7	25	3838+1919	1220*3660	40	16.6
8	25	40*40	1007*4047	66	12.5
9	25	100*25	1007*4047	66	13
10	25	101.6*25.4	1220*3660	64	15.2
11P	30	38*38	12203660/10004038	68	15
12	30	3838+1919	1220*3660	40	18.6
13	30	4040+2020	1007*4047	42	18.0
14	30	38*38	1220*3660	30	22.0
15P	38	38*38	12203660/15253050	68	19.0
16	38	3838+1919	1220*3660	40	23.7
17	38	4040+2020	1007*4047	42	23.5
18	38	38*152	1220*3660	66	19.0
19	40	40*40	1007*4047	66	20.0
20	50	38*38	1220*3660	56	42.0
21	50	50*50	1220*3660	78	21.2
22	60	38*38	1220*3660	54	51.5

Note:

1.The above are only the commonly used specifications of the company's products, and you are welcome to inquire about special specifications or special customization;

2.The letter P after the number indicates that the specification of the grille can provide phenolic grille products.

3.The product has passed the ASTME-84 fire test and the American Bureau of Shipping quality certification. Under the strict quality control production process, the product qualification rate is as high as 99.8%, and it has passed the 1S09001:2008 quality system certification.

Type of glass fiber roving

Code	Roving Type	Recommended use occasions
E	E-Roving	Applicable to situations with high strength requirements and high corrosion resistance

The type of filler used

Code	Packing type	Recommended use occasions
ATH	Aluminum hydroxide	Flame retardant, smoke suppression, corrosion resistant occasions
PR	No filler, pure resin	For high corrosion resistance
